Discontinued. Andrisoft no longer builds, sells or delivers preconfigured appliances. The specifications below are kept for reference by existing owners. For current options, see Wanguard software or build your own appliance.

Anti-DDoS Appliances

Andrisoft used to offer turnkey network security appliances pre-configured with our DDoS detection and mitigation software to actively protect networks from 10 Gbps to 100 Gbps. The appliances were based on open source standards to allow quick and seamless integration in any existing infrastructure. Three models were produced, listed below as they were last specified.

WS-100

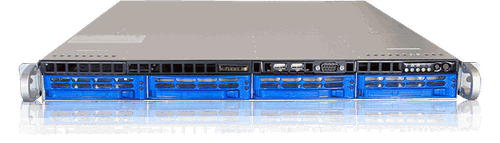

Andrisoft WS-100 1U rack-mount appliance
Server Role*DDoS Detection & Mitigation
Throughput2 x 100 Gbps (~50 Mpps)
Disk Drive240 GB SSD
1G Ethernet2 x RJ-45 (Management + IPMI)
10G Ethernet–
40G Ethernet–
40G / 100G Ethernet2 x QSFP28 (In + Out)
Power SupplyRedundant, 2 x 750W, 240V, IEC C14
DimensionsHeight 1.7" (43 mm)
Width 17.2" (437 mm)
Depth 25.6" (650 mm)
Warranty36 Months
Delivery ZoneEuropean Union

WS-40

Andrisoft WS-40 1U rack-mount appliance
Server Role*DDoS Detection & Mitigation
Throughput2 x 10/40 Gbps (~30 Mpps)
Disk Drive240 GB SSD
1G Ethernet2 x RJ-45 (Management + IPMI)
10G Ethernet2 x SFP+ (In + Out)
40G Ethernet2 x QSFP+ (In + Out)
40G / 100G Ethernet–
Power SupplyRedundant, 2 x 750W, 240V, IEC C14
DimensionsHeight 1.7" (43 mm)
Width 17.2" (437 mm)
Depth 25.6" (650 mm)
Warranty36 Months
Delivery ZoneEuropean Union

WS-C

Andrisoft WS-C 1U rack-mount appliance
Server Role*Flow Collector / Web Console
Throughput–
Disk Drive2 x 2-10 TB HDD / 240-960 GB SSD
1G Ethernet2 x RJ-45 (Management + IPMI)
10G Ethernet–
40G Ethernet–
40G / 100G Ethernet–
Power SupplyRedundant, 2 x 750W, 240V, IEC C14
DimensionsHeight 1.7" (43 mm)
Width 17.2" (437 mm)
Depth 25.6" (650 mm)
Warranty36 Months
Delivery ZoneEuropean Union

* Wanguard Console on WS-40/-100 had access to a single CPU core, while all the other cores were used exclusively for packet analysis and forwarding.

What to use instead

The software that ran on these appliances is still fully supported and is what we recommend today. Andrisoft Wanguard installs in minutes on any 64-bit Intel or AMD server, so you can pick hardware that matches your traffic and refresh it independently of the software.
